Propane (also called LPG—liquefied petroleum gas—or LP gas) is a widely used fuel. It is transported and stored as a very cold liquid, and can cause a “freeze burn” or frostbite if it contacts the skin. The liquid propane is turned into a gas inside a tank or a cylinder. In its natural form, propane is colorless and odorless. To make propane easier to detect in the event of a leak or spill, manufacturers deliberately add a chemical compound to give it a distinctive smell.
Propane is flammable when mixed with air (oxygen) and can be ignited by many sources, including open flames, smoking materials, electrical sparks, and static electricity.
Propane vapors are heavier than air. For this reason, they may accumulate in low-lying areas such as basements, crawl spaces, and ditches, or along floors. However, air currents can sometimes carry propane vapors elsewhere within a building.
It is important to become familiar with the parts of your propane system so that you can take quick and appropriate action in case of a leak or other emergency.
Propane is delivered to your home as a very cold liquid and is pumped into a specially designed storage tank. The liquid changes to gas before it leaves the tank. Propane tanks are typically painted white or silver to reflect heat and prevent the pressure inside the tank from getting too high.
If you have an underground tank, only the cover will be visible above ground.
The cover on top of the tank protects several components from weather and physical damage, including:
Propane flows from your tank to your home through pipes, most of which run underground.
You may also have a secondary pressure regulator on an outside wall of your home to further adjust gas pressure.
A shut-off valve in each pipe can be closed to stop gas flow to an individual appliance.
An appliance connector is the final segment in the gas piping system. This specially designed flexible tube—typically 2 or 3 feet long—carries gas from a pipe to the back of an appliance.
FLAMMABLE VAPORS ARE A SERIOUS SAFETY HAZARD!
TO HELP REDUCE THE RISK OF FLAMMABLE VAPOR IGNITION:
PROPANE VAPORS CAN BE DANGEROUS. Propane vapor is also combustible and can ignite explosively. Keep propane storage containers closed. Never store propane cylinders in an enclosed area, or near a heat or ignition source.
Propane has a strong, unpleasant smell like rotten eggs, a skunk’s spray, or a dead animal. Propane manufacturers add the smell deliberately to help alert customers to propane leaks, which can create a safety hazard.
TAKE THE SNIFF TEST. Teach everyone in your home or building what propane smells like. You can use the blue circle on the page opposite of the inside front cover. Or, ask your propane retailer for a demonstration.
CAN YOU SMELL IT?
ODOR LOSS ALSO CAN DIMINISH PROPANE’S SMELL.
Odor Loss. On rare occasions, propane can lose its odor. Several things can cause this including:
Since there is a possibility of odor loss or problems with your sense of smell, you should respond immediately to even a faint odor of gas.
IF YOU ARE CONCERNED that you or others in your home may have difficulty smelling propane, consider buying one or more propane gas detectors.
CONSIDER INSTALLING GAS DETECTORS.
DETECTOR QUALITY IS IMPORTANT. Be sure the units you buy are listed by Underwriters Laboratories (UL). To be sure propane gas detectors operate properly, install and maintain them as the manufacturer recommends.
TRUST YOUR NOSE. Never ignore the smell of propane, even if no detector is sounding an alarm to signal the presence of propane. However, if a detector is sounding an alarm, treat it as an emergency and act immediately, even if you do not smell the propane.
CHECK YOUR PROPANE SYSTEM. Even if you install gas detectors, have a qualified service technician inspect your propane system and propane appliances periodically.
WHAT IS CARBON MONOXIDE? Carbon monoxide (CO) is a colorless, odorless, tasteless, and toxic gas. Smoking a cigarette; idling a gasoline engine; and burning fuel oil, wood, kerosene, natural gas, and propane all produce CO. High levels of CO can be produced when fuels are burned incompletely.
WHERE DO HIGH LEVELS OF CO COME FROM? High levels of CO can be generated by appliances that are defective or improperly installed or maintained. CO can also enter a home if an appliance venting system or chimney becomes blocked (for example, by a bird’s nest).
CO CAN BE DEADLY! High levels of CO can make you dizzy, give you headaches, or cause flu-like symptoms (see the list below). In extreme cases, high levels of or extended exposure to CO can result in brain damage or death. Young children; the elderly; people with heart disease; and those under the influence of alcohol, drugs, or medication are particularly susceptible to CO poisoning.
Symptoms of CO poisoning include:
CO DETECTORS CAN IMPROVE SAFETY. CO detectors are designed to sound an alarm when they sense excessive levels of CO in the air. We recommend that you consider installing a CO detector listed by UL on each level of your home. Be sure to follow the manufacturer’s instructions regarding installation, location, and maintenance. These devices can provide an extra measure of safety.
IF YOU SUSPECT CO IS PRESENT, ACT IMMEDIATELY!
TO HELP REDUCE THE RISK OF CO POISONING:
SIGNS OF IMPROPER APPLIANCE OPERATION THAT CAN GENERATE HIGH CO LEVELS:
DON’T RUN OUT OF GAS. Serious safety hazards, including fire or explosion, can result.
IT IS STRONGLY RECOMMENDED THAT A QUALIFIED SERVICE TECHNICIAN LIGHT ANY PILOT LIGHT THAT HAS GONE OUT.
WHAT IS A PILOT LIGHT? Many propane appliances may have a pilot light—a small, constantly burning flame inside the appliance. (Appliances without a pilot light often have electronic ignition instead.) If your appliance has a pilot light, it is an important safety feature. The pilot light ignites the main burner when needed.
WHEN A PILOT LIGHT GOES OUT. A pilot light that repeatedly goes out—or is very difficult to light—may be signaling that there is a problem with the appliance or with your propane system. If this occurs, do not try to fix the problem yourself. Contact a qualified service technician to evaluate the appliance. Accidents and serious injuries can occur when customers attempt to fix a pilot light problem on their own.
IF YOU LIGHT A PILOT LIGHT YOURSELF, you are taking the risk of STARTING a fire or an explosion. Many serious injuries occur when people attempt to light pilot lights. Proceed with great caution and follow these rules:
Carefully follow all of the manufacturer’s instructions and warnings concerning the appliance.
If the appliance is in a basement or closed room, thoroughly ventilate the area before lighting the pilot.
MAINTENANCE IS IMPORTANT. All appliances using propane must be properly maintained in order to operate safely, properly, and efficiently.
LEAVE IT TO THE EXPERTS. Only a qualified service technician has the proper training to install, service, maintain, and repair your appliances. Make sure you have a qualified service technician install and service your appliances.
ANNUAL INSPECTION IS IMPORTANT. Contact a qualified service technician to perform an appliance inspection.
BE SURE YOUR APPLIANCES CAN “BREATHE” PROPERLY. Regularly check the vents of your appliances to be sure that flue gases can flow easily to the outdoors. Insects, birds, and small animals sometimes build nests in vent pipes. Other obstructions such as snow or ice may also occur. If you see evidence of this, call a qualified service technician. Also, clear the area around your appliance to be sure plenty of air can reach the burner for proper combustion.
NEVER store combustible materials near appliances.
WATCH FOR YELLOW FLAMES OR SOOT BUILD-UP. When appliances are operating properly, propane burns with a blue flame. If you see yellow flames, or notice significant amounts of soot on any equipment, the gas may not be burning completely. This can create carbon monoxide, a colorless, odorless, and poisonous gas. Contact a qualified service technician if any of the above conditions occur.
PROPERLY INSTALL AND MAINTAIN CONNECTORS. The final section of the system that brings gas to your appliances is the appliance connector. It is important that all appliance connectors are properly inspected, installed, and maintained by a qualified service technician.
HAVE CONNECTORS CHECKED WHEN MOVING OR REPLACING APPLIANCES. Connectors can wear out from too much moving, bending, or corrosion. Connectors should be checked by a qualified service technician whenever the appliance is replaced or moved from its location.
USE ONLY APPROVED APPLIANCE CONNECTORS. Make sure that all connectors and gas piping/tubing that bring propane to your appliances are installed by a qualified service technician and approved by the American National Standards Institute (ANSI).
HAVE OLDER APPLIANCE CONNECTORS INSPECTED. Over time, some types of appliance connectors can crack or break, resulting in a serious gas leak and the possibility of fire or explosion. The Consumer Product Safety Commission (CPSC) has warned that certain types of older connectors are extremely dangerous. If you have an appliance that is more than 20 years old, have a qualified service technician inspect the connectors to be sure they are safe and meet current safety-code requirements.
DO NOT MOVE AN APPLIANCE YOURSELF to check the connector; this might damage the connector and create a leak.
TREAT CONNECTORS WITH CARE. When an appliance is moved, be careful not to damage the appliance connector (the flexible tubing that brings gas to the unit). Older connectors can crack if flexed or twisted, which can lead to a gas leak.

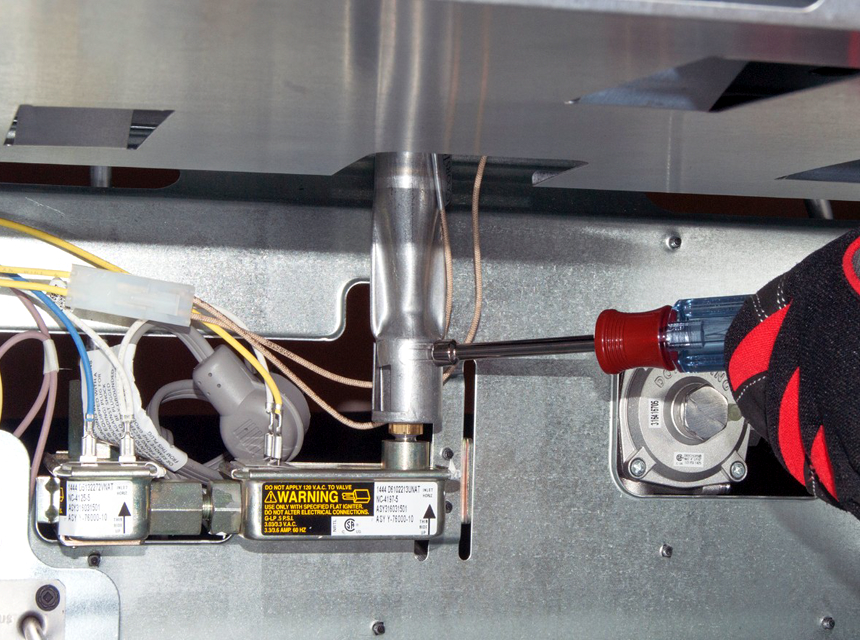

IS THE APPLIANCE DESIGNED TO USE PROPANE? Be sure that any new or used appliance being installed is designed for use with propane. Natural gas appliances SHOULD NOT be used with propane unless a qualified service technician has made required adjustments to the appliance.
HAVE THE APPLIANCE CHECKED OUT BEFORE YOU USE IT. Be sure that the appliance is properly installed and that all controls and valves operate correctly. Contact a qualified service technician for assistance.
CAP OR PLUG UNATTACHED GAS LINES. If you move a gas appliance and disconnect it from a gas line, be sure to contact your propane retailer or a qualified service technician to close, cap, or plug the open gas line. Any connectors or gas line not connected to an appliance can leak gas, or can be damaged if water accumulates inside it. The valve on any unattached gas line must be closed, and the open end must be sealed by installing a threaded cap or plug.
KEEP YOUR HOME SAFE WHEN YOU’RE AWAY. If you’re leaving your home for an extended period, consider closing all propane supply valves. This includes the main gas supply valve on the propane tank as well as gas supply valves located near individual appliances.
WHEN YOU RETURN to your home after an extended absence, contact your propane retailer or a qualified service technician to conduct a leak check before the propane is turned on and to re-light the pilot lights.
DO NOT UNDER ANY CIRCUMSTANCES try to modify or repair valves, regulators, connectors, controls, or other appliance and cylinder/tank parts. Doing so creates the risk of a gas leak.
CALL AN EXPERT. If you are unable to operate any part of your propane system, or if you think an appliance or other device is not operating properly, call your propane retailer or a qualified service technician. They can inspect, adjust, repair, or replace any part of your propane system.
YOUR PROPANE SYSTEM IS DESIGNED FOR SAFETY. Propane cylinders, tanks, and appliances incorporate special components (such as valves, connectors, controls, burners, and pilot lights) to keep them safe for use. Damaging these components can cause gas leaks.

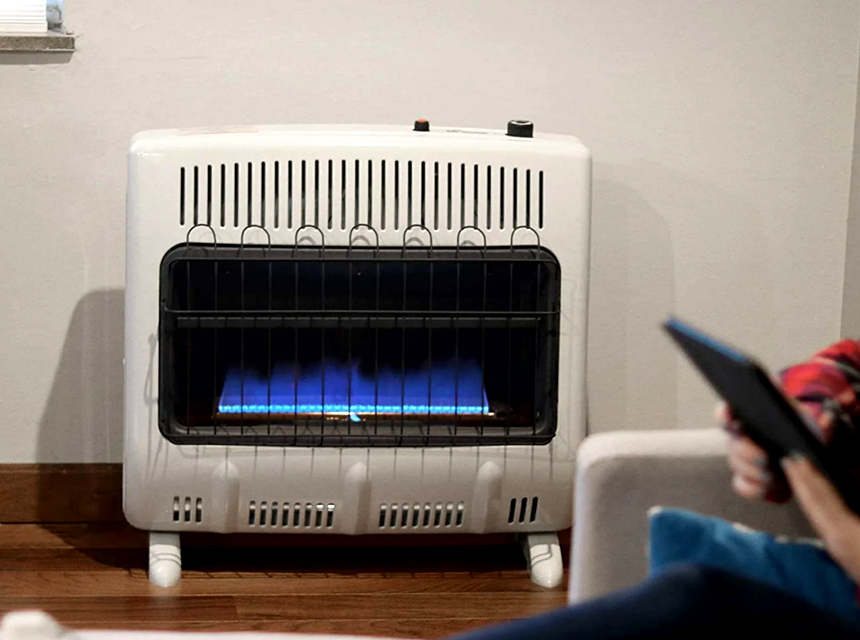

USE THE RIGHT KIND OF HEATER. Some propane space heaters are designed only for use outdoors. Others are designed only for use indoors. Check your owner’s manual or contact a qualified service technician to be sure you are using the right kind of heater.
DO NOT USE AN OUTDOOR HEATER INDOORS. High levels of CO can be generated from heaters that are not designed for indoor use. High levels of CO can make you dizzy, give you headaches, or cause flu-like symptoms. In extreme cases, extended exposure to CO can result in brain damage or death.
READ YOUR SPACE HEATER MANUAL. The appliance manufacturer’s manual that came with your space heater tells how to set up and operate it safely. Read the entire manual and carefully follow all directions.
